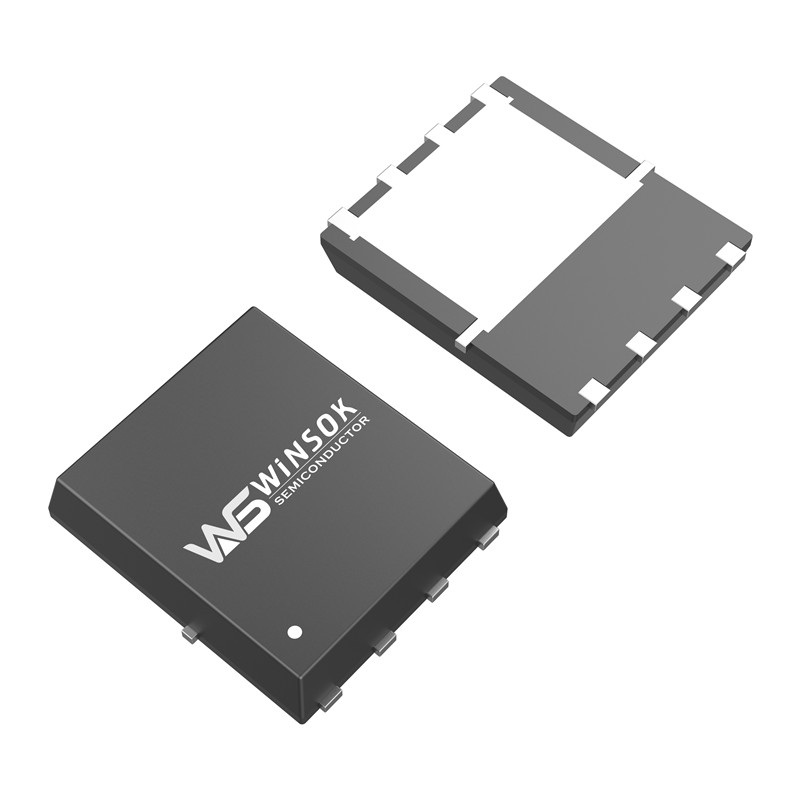

OEM WSD3023DN56 N-Ch and P-Channel 30V/-30V 14A/-12A DFN5*6-8 WINSOK MOSFET Manufacturer, Buy

Product Description

The WSD3023DN56 is the highest performance trench N-channel and P-channel MOSFETs with extreme high cell density, which provide excellent RDSON and gate charge for most of the synchronous buck converter applications. The WSD3023DN56 meets the RoHS and Green Product requirements, featuring 100% EAS guarantee with full function reliability approval.

  • Advanced High Cell Density Trench Technology
  • Super Low Gate Charge
  • Excellent CdV/dt Effect Decline
  • 100% EAS Guaranteed
  • Green Device Available

Absolute Maximum Ratings

Symbol Parameter Rating Units
N-Ch P-Ch
VDS Drain-Source Voltage 30 -30 V
VGS Gate-Source Voltage ±20 ±20 V
ID Continuous Drain Current, VGS(NP)=10V, Ta=25℃ 14* -12 A
Continuous Drain Current, VGS(NP)=10V, Ta=70℃ 7.6 -9.7 A
IDP a Pulse Drain Current Tested, VGS(NP)=10V 48 -48 A
EAS c Avalanche Energy, Single pulse, L=0.5mH 20 20 mJ
IAS c Avalanche Current, Single pulse, L=0.5mH 9 -9 A
PD Total Power Dissipation, Ta=25℃ 5.25 5.25 W
TSTG Storage Temperature Range -55 to 175 -55 to 175
TJ Operating Junction Temperature Range 175 175
RqJA b Thermal Resistance-Junction to Ambient, Steady State 60 60 ℃/W
RqJC Thermal Resistance-Junction to Case, Steady State 6.25 6.25 ℃/W

Electrical Characteristics

Symbol Parameter Conditions Min. Typ. Max. Unit
BVDSS Drain-Source Breakdown Voltage VGS=0V, ID=250uA 30 --- --- V
RDS(ON)d Static Drain-Source On-Resistance VGS=10V, ID=8A --- 14 18.5
VGS=4.5V, ID=5A --- 17 25
VGS(th) Gate Threshold Voltage VGS=VDS, ID=250uA 1.3 1.8 2.3 V
IDSS Drain-Source Leakage Current VDS=20V, VGS=0V, TJ=25℃ --- --- 1 uA
VDS=20V, VGS=0V, TJ=85℃ --- --- 30
IGSS Gate-Source Leakage Current VGS=±20V, VDS=0V --- --- ±100 nA
Rg Gate Resistance VDS=0V, VGS=0V, f=1MHz --- 1.7 3.4 Ω
Qge Total Gate Charge VDS=15V, VGS=4.5V, IDS=8A --- 5.2 --- nC
Qgse Gate-Source Charge --- 1.0 ---
Qgde Gate-Drain Charge --- 2.8 ---
Td(on)e Turn-On Delay Time VDD=15V, RL=15R, IDS=1A, VGEN=10V, RG=6R. --- 6 --- ns
Tre Rise Time --- 8.6 ---
Td(off)e Turn-Off Delay Time --- 16 ---
Tfe Fall Time --- 3.6 ---
Cisse Input Capacitance VDS=15V, VGS=0V, f=1MHz --- 545 --- pF
Cosse Output Capacitance --- 95 ---
Crsse Reverse Transfer Capacitance --- 55 ---

Product Applications

High Frequency Point-of-Load Synchronous Buck Converter (MB/NB/UMPC/VGA)
Networking DC-DC Power Systems
CCFL Back-light Inverters
Drones & Motor Control
Automotive Electronics
Major Appliances

Frequently Asked Questions

What type of device is the WSD3023DN56?
The WSD3023DN56 is a high-performance Trench N-channel and P-channel complementary MOSFET featuring extremely high cell density, optimized for synchronous buck converter applications.
Does the WSD3023DN56 comply with green environmental standards?
Yes, it meets 100% RoHS and Green Product requirements, making it suitable for environmentally friendly designs.
What is the Operating Junction Temperature range for this MOSFET?
The operating junction temperature range (TJ) for the WSD3023DN56 is up to 175℃.
What are the core technical advantages of this chip?
Key benefits include advanced Trench technology, super low gate charge, excellent CdV/dt effect decline, and it is 100% EAS (Energy Avalanche Single-pulse) guaranteed.
What are the typical applications for the WSD3023DN56?
It is widely used in high frequency point-of-load synchronous buck converters for MB/NB/UMPC/VGA, networking DC-DC power systems, CCFL back-light inverters, drones, motor drives, automotive electronics, and major consumer appliances.
