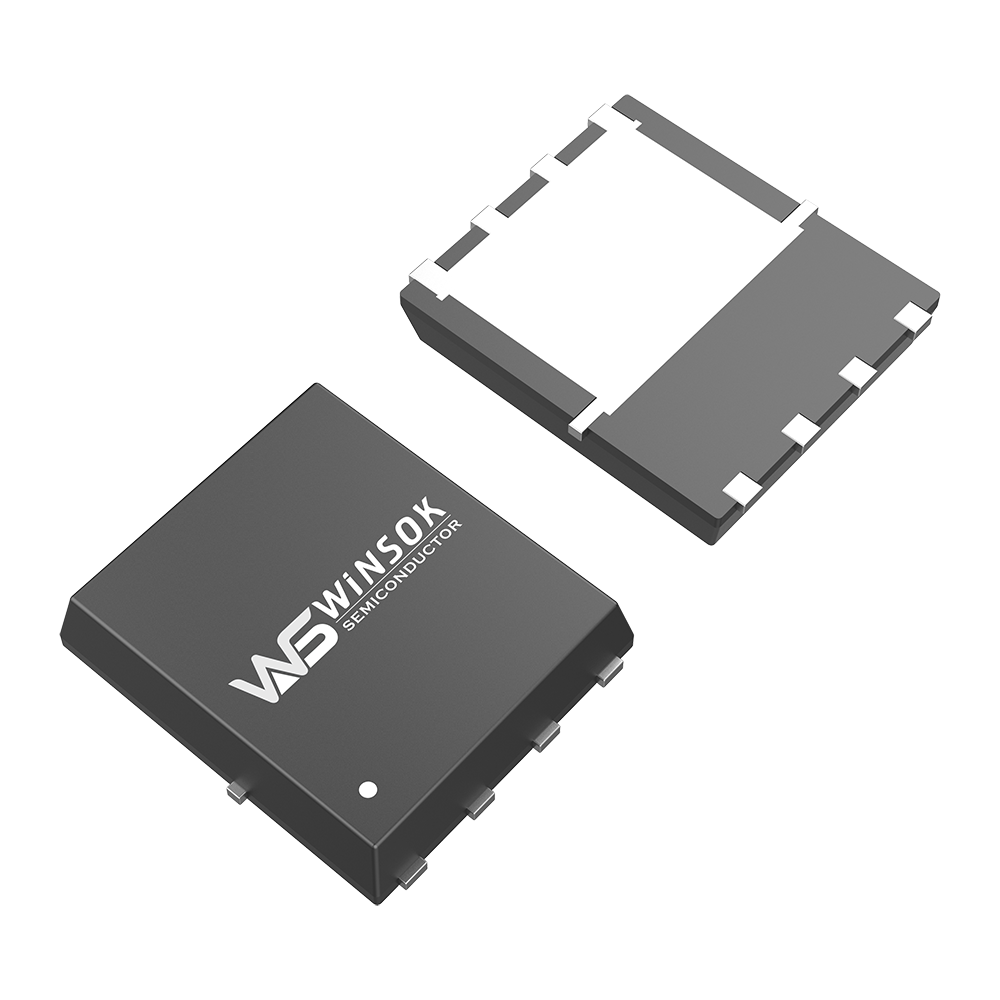

The voltage of WSD3067DN56 MOSFET is ±30V, the current is 24A/-20A, the resistance is 11mΩ, the channel is N+P-channel, and the package is DFN5X6-8L. It is widely used in Motor motors, automotive electronics, and small appliances.
What are the main applications of the WSD3067DN56 MOSFET?
The WSD3067DN56 MOSFET is widely applied in motor control systems, automotive electronics, and small home appliances due to its efficient N+P channel design.
What is the voltage and current rating of this MOSFET?
It features a VDS voltage rating of ±30V. The continuous current rating (ID) is 24A for the N-channel and -19.8A for the P-channel.
What package type is used for WSD3067DN56?
This MOSFET is packaged in a space-saving and thermally efficient DFN5X6-8L surface-mount package.
What are the RDS(ON) resistance values?
The typical RDS(ON) resistance is 11mΩ for the P-channel (at 10V gate drive) and 15mΩ (Max) / 20mΩ (Typ) for the N-channel at 10V.
What are some equivalent cross-reference parts for this device?
Compatible cross-reference parts include POTENS PDC3701T, as well as AOS AON6661, AON6667, and AOND32324 models.
